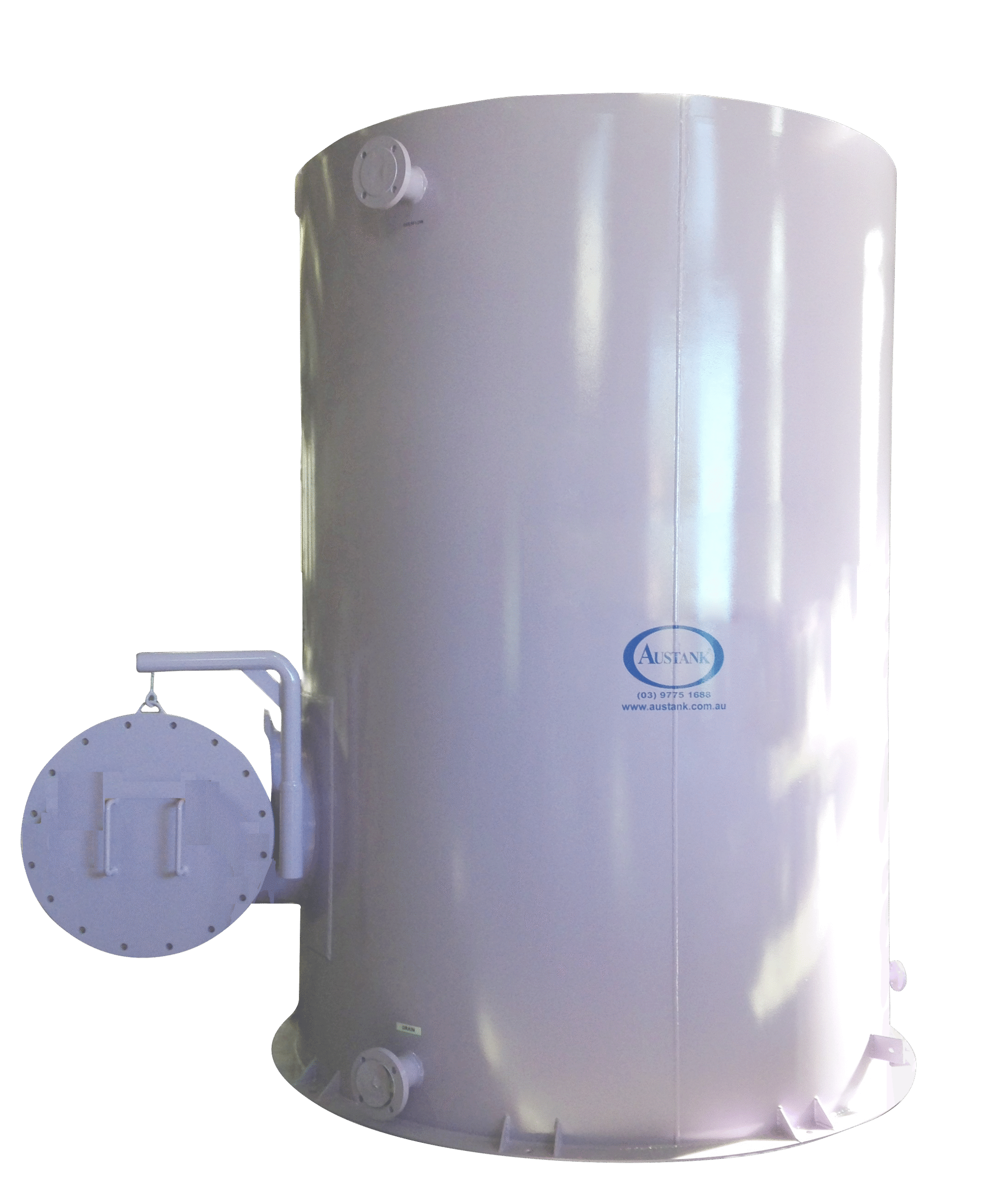

Vertical Single skin chemical storage tank
Vertical chemical storage tanks
Austank’s vertical chemical storage tanks are ideal for situations where space is limited. Common applications for vertical tanks are where large volumes of liquid need to be stored. They are commonly use for chemicals, fuel and oils.

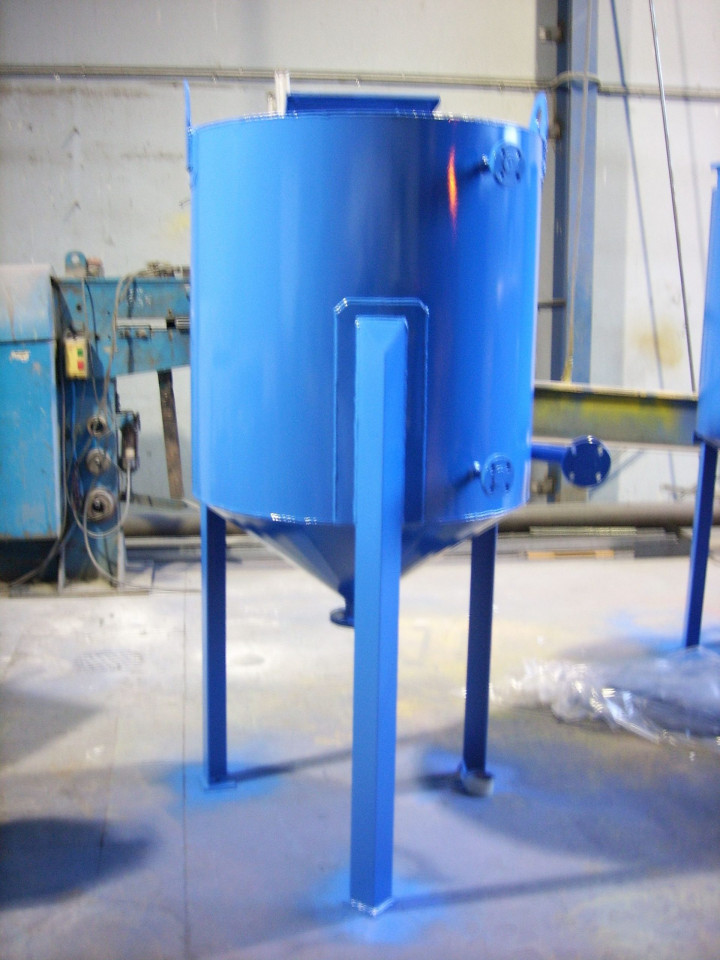

Tanks are available with flat bottoms on ground or on legs or with conical bottoms on legs.
Standard fittings for a vertical storage tank:
1 x 80NB ANSI 150 Flange –Inlet
1 x 80NB ANSI 150 Flange –Outlet
1 x 80NB BSP Socket – Tank Vent c/w aluminium weatherproof cap
1 x 80NB BSP Socket – Spare
1 x 500NB Manway c/w gasket and fasteners
4 x 1,000mm Legs with 400-600mm Ground Clearance
1 x Dished, Conical or Flat bottom (nominate one)
1 x Access Ladder – hot dipped galvanised

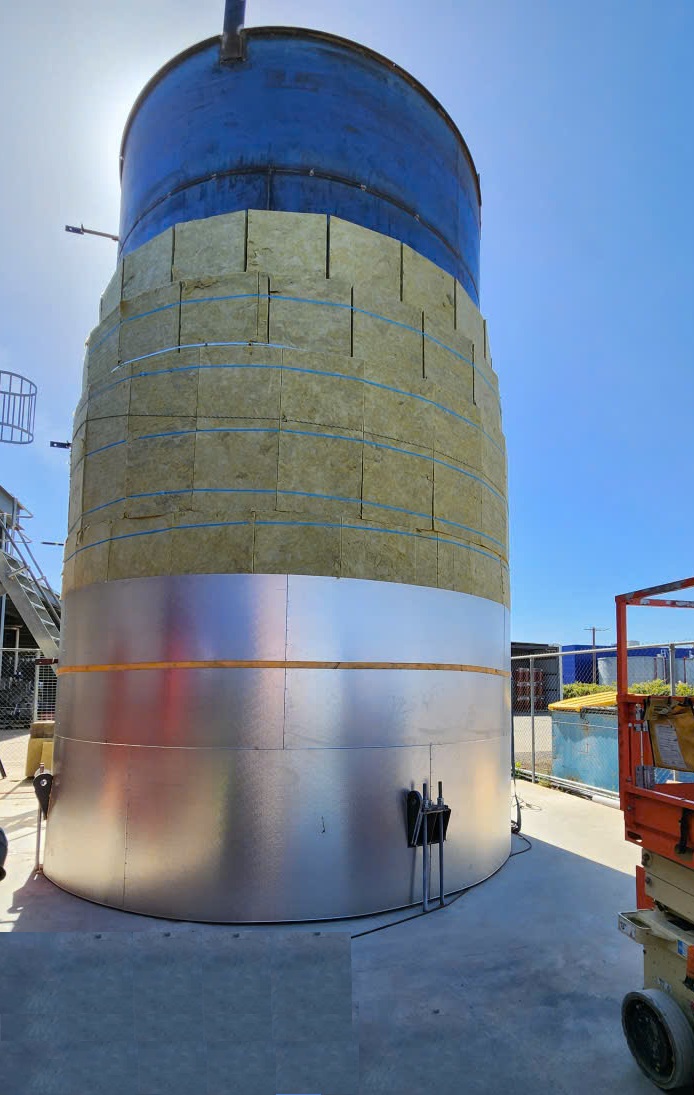

A wide range of options from insulation, cladding, internal heating elements, internal epoxy coating and external ladders and walkways are also available.
We have no standard sizes for vertical storage tanks and quote them based on the customer requirements; please contact us for a quote.
All Austank vertical chemical storage tanks are manufactured to meet or exceed current industry and Australian standards
AS 1692-2006 Steel Tanks for Flammable and Combustible Liquids
AS 1940-2017 The Storage and Handling of Flammable and Combustible Liquids
AS 1657-2018 Fixed Platforms, Walkways, Stairways and ladders – Design, construction and installation
